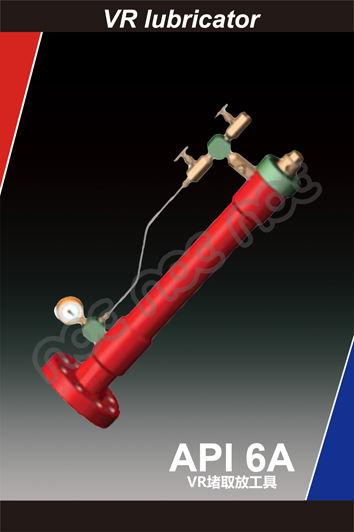

Product name：VR Plug lubricator
Product introduction：Lubricator installs VR plugs in casing head, casing spool, or tubing head side outlets so gate valves can be isolated from pressure for removal or repair.
Product introductionTechnical ParametersApplication areasDownload certificate
Product description
Lubricator
installs VR plugs in casing head, casing spool, or tubing head side outlets so
gate valves can be isolated from pressure for removal or repair.
Features
01.Lubricator
mounts on the gate valve outlet flange. With the lubricator holding the
pressure, the gate valve can be opened, allowing the VR plug to pass through
the valve and be threaded into the head or spool outlet.
02.All
studded and flanged outlets on NOE casing heads, casing spools, and tubing
heads are threaded to accept VR plugs. VR adapters are available for threaded
outlets.
03.For
outlet working pressures of 15,000psi, straight-thread, metal-to-metal seal VR
plugs are standard. For lower working pressures, tapered-thread VR plugs are
standard.
